LokPlate™ Plastic Downspout Nozzle & Self-Locking Escutcheon Plate

*Free economy shipping on orders over $150*

Overview

The LokPlate™ plastic downspout nozzle and included optional-to-install escutcheon plate is designed to fit standard Schedule 40 or 80 DWV pipes (2-Inch, 3-Inch, 4-Inch, 6-Inch, 8-Inch & 10-Inch), enabling optimal water redirection. It can support various use cases, such as a downspout nozzle to prevent staining or erosion of your building's exterior and foundation, or other applicable uses like a pool scupper. This product comes as a two piece set:

• Downspout nozzle (i.e., cow tongue, scupper, spillover)
• Round (self-locking) escutcheon plate (i.e., wall flange, beauty ring)

Key Features

1. No Metal = No Theft

Metal downspout nozzles are common targets of theft given their high recycle value. A plastic downspout nozzle offers a cost-effective alternative to metal which deters theft and the need for costly replacements.

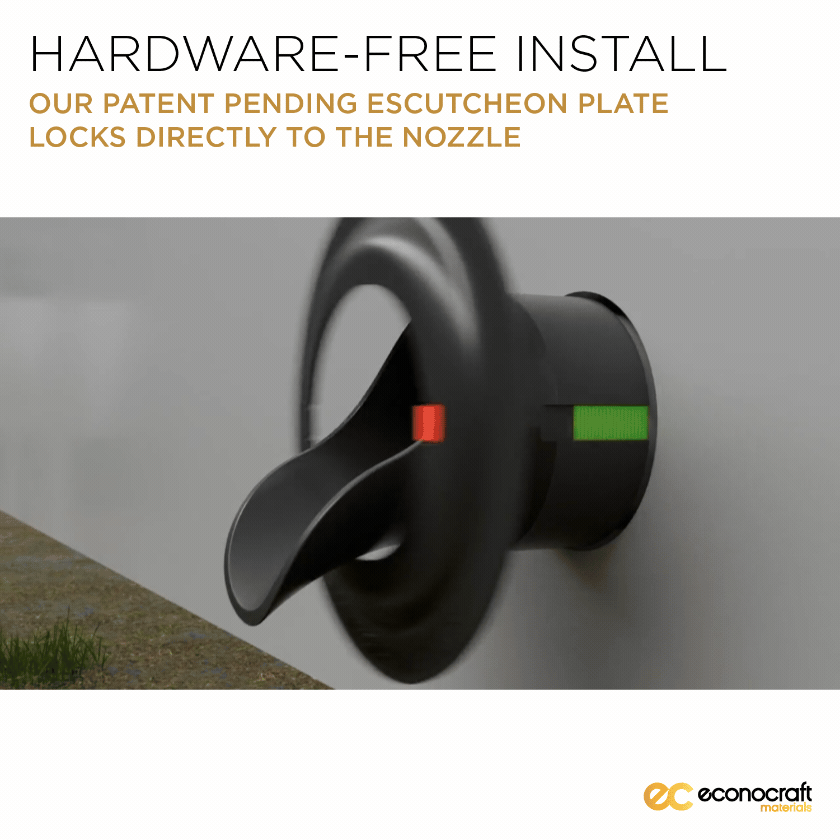

2. Hardware-Free Install

With its patent-pending locking mechanism, the included escutcheon plate locks directly to the nozzle without the need for hardware or glue, decreasing your install time and cost while avoiding damage to the building. The optional escutcheon plate also incorporates a raised, hollow center ring for optimal clearance of any debris around the pipe opening. This coupled with the nozzle's locking track enables support for multiple install conditions (e.g., the drain pipe is too long, too short or even crooked).

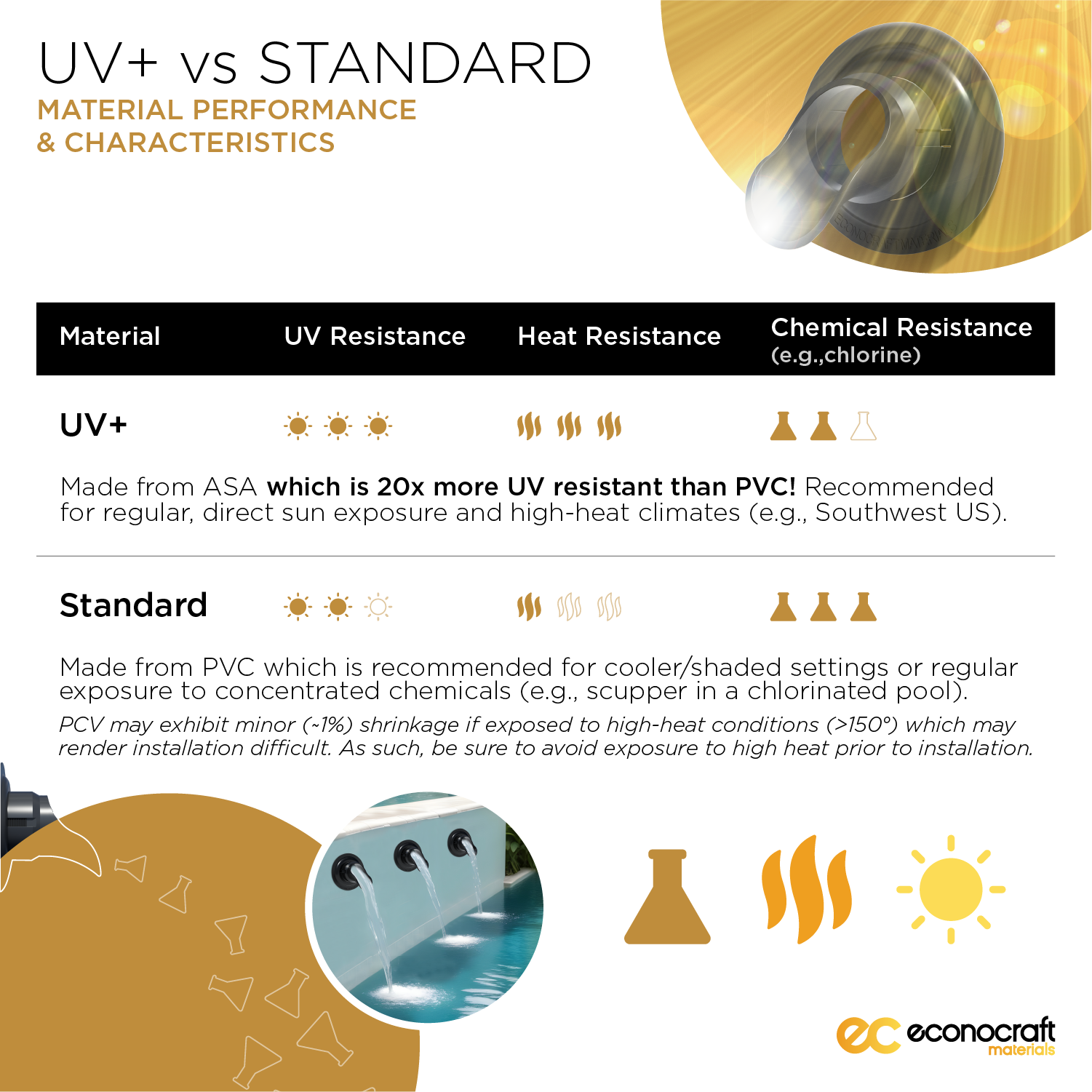

3. UV-Resistant Plastic

Both components are made from an injection-molded plastic which incorporates a high-grade polymer which boasts enhanced UV and impact-resistant properties. Furthermore, the color is integrated directly into the plastic itself vs. being painted on post-production. This ensures a durable build and long-lasting color so that you aren't compromising on quality.

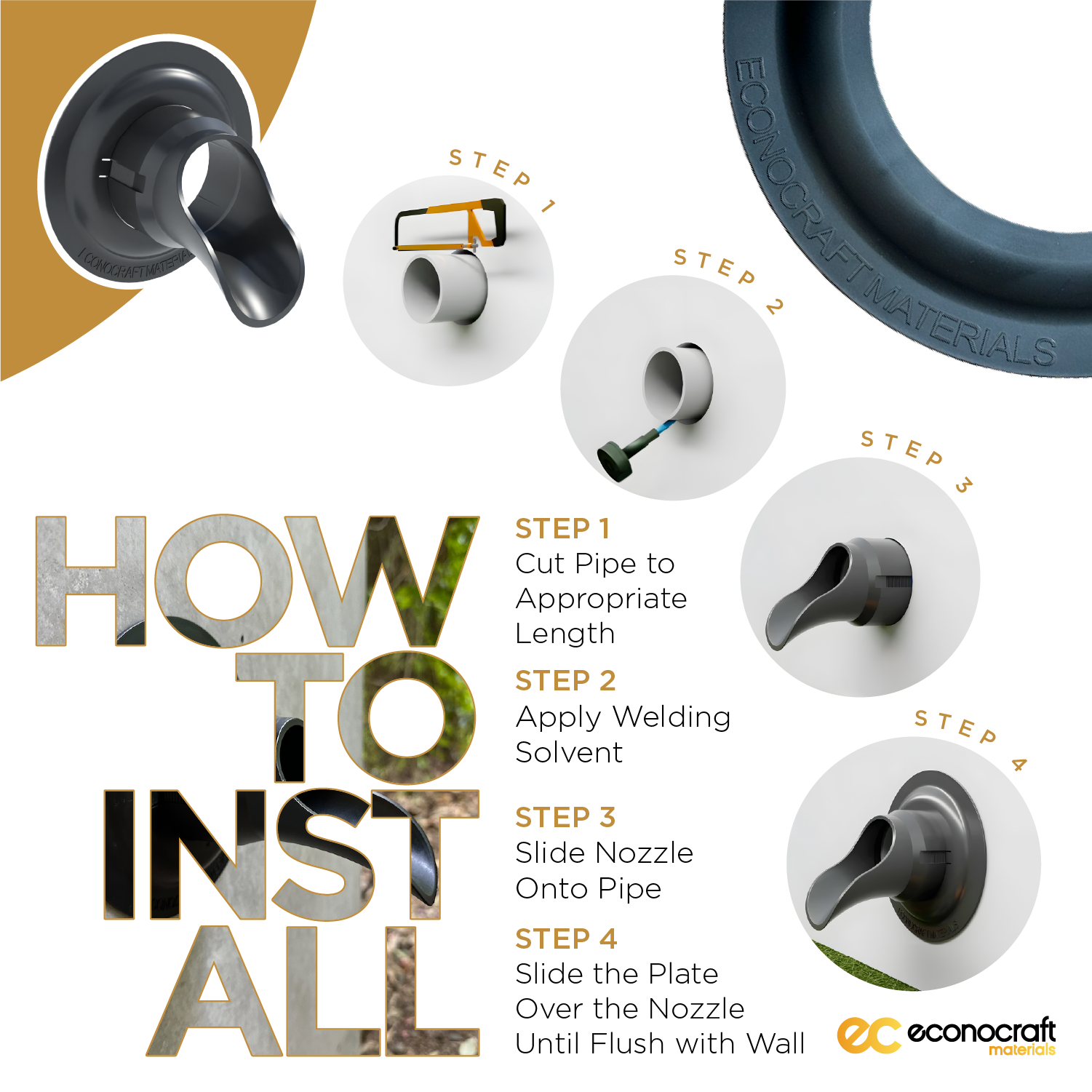

Install Instructions:

1. Cut extruding drainage pipe to recommended length (1.5 inches)
2. Optionally clean pipe's outer surface to ensure a smooth exterior which is free of any debris
3. Glue the spout onto the extruding pipe with an appropriate plastic compound. While any general plastic adhesive is acceptable, recommend ABS-to-PVC transition cement for strongest bond.
4. Slide the escutcheon plate over the spout and lock onto the spout's locking track until flush with the wall - no need for any hardware, caulk or other adhesive!

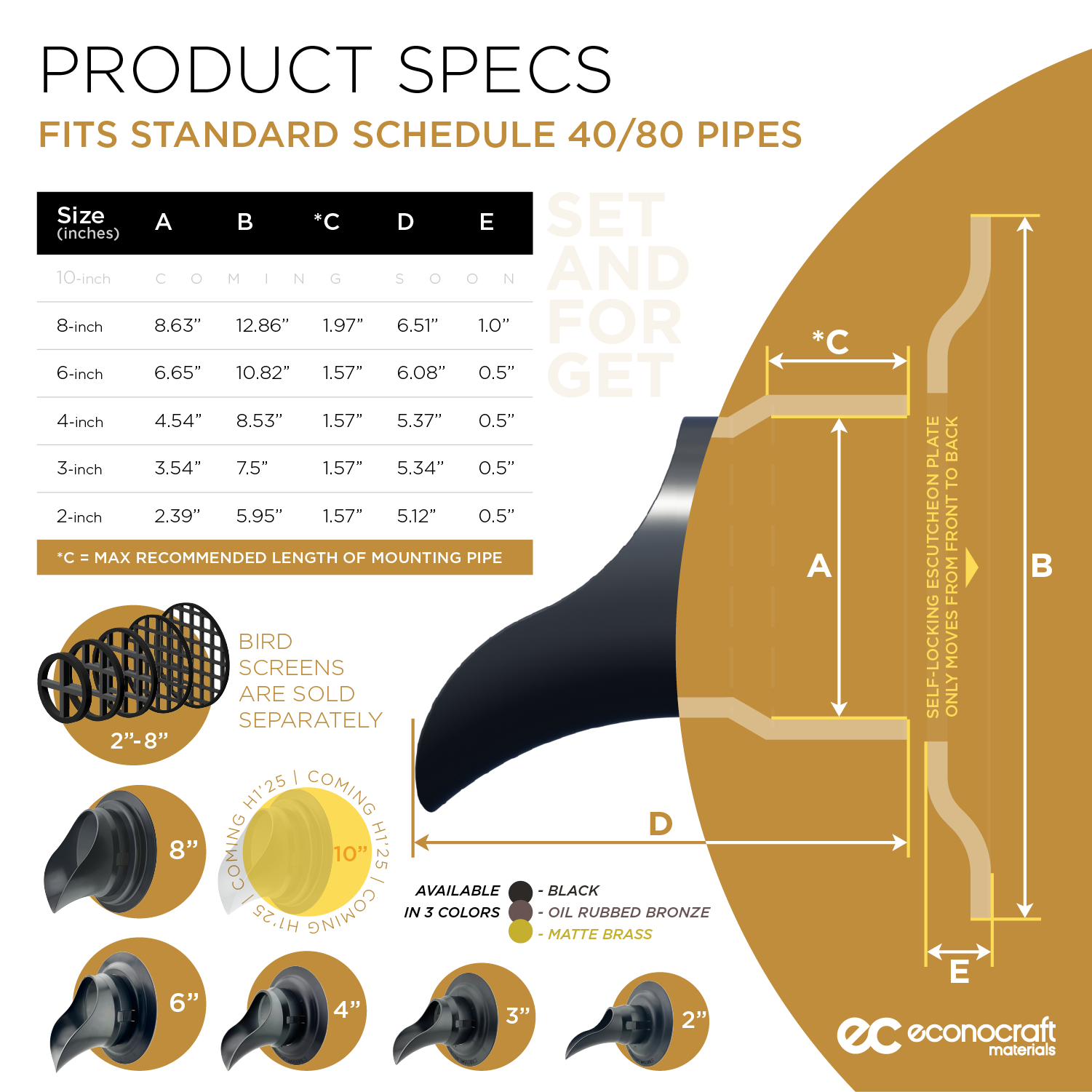

Refer to our spec page for detailed product specifications. Current sizes includes 2" 3" 4", 6", 8"& 10".
